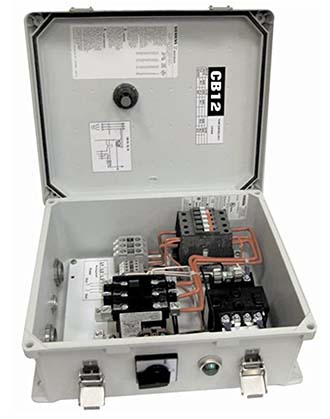

Multiquip Submersible Pump Control Box #CB12 - Cntrl Box ST4125 ST6125 (230V only)

 Multiquip Submersible Pump Control Box #CB12 - Cntrl Box ST4125 ST6125 (230V only)

230V, 50Hz Three Phase Controller. This box provides overheat/overload protection plus prevents short circuits, single phasing and power spikes. The overload guards have adjustable amperage settings. Manual switch and running lights; designed to accept float switches for automatic operations. Housing manufactured from polyester reinforced fiberglass, water resistant, UL/CSA Certified. Watertight housing and cable glands prevent water intrusion; and an extra gland is provided in case float switches are used with the box. For Multiquip ST4125G and ST6125G, wired for 230V operations only.

See Mulitquip Electric Submersible Pumps Brochure

See Multiquip Pump Selection Handbook

Features

• 230V 50/60 Hz Three Phase Controller.

• Magnetic starter, relay, transformer and overload protection.

• Prevents short circuits, single phasing and power spikes.

• Overload guards have adjustable amperage settings.

• Manual ON/OFF switch and running lights

• Designed to accept float switches for automatic operations (sold separately)

• Housing manufactured from polyester reinforced fiberglass.

• Watertight housing and cable glands prevent water intrusion; and an extra gland is provided in case float switches are used with the box.

• UL/CSA Certified.

• For Multiquip ST4125D and ST6125D when wired for 230V operations, and other comparable pump models.
