Wacker Neuson BPS2050B - 19.7" width, 4496 lb CF, Briggs Engine, Single Direction (5100066077)
Wacker Neuson BPS2050B - 19.7" width, 4496 lb CF, Briggs Engine, Single Direction (5100066077)
Wacker Neuson BPS2050B - 19.7" width, 4496 lb CF, Briggs Engine, Single Direction (5100066077)

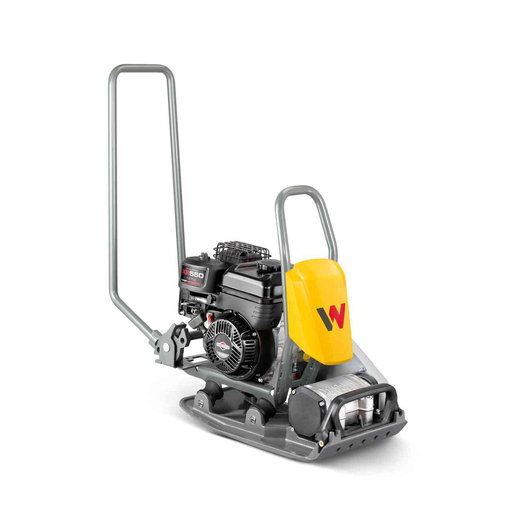

The Wacker Neuson BPS2050B Vibratory Plate is the perfect tool for any soil or asphalt compaction project. Designed with power and productivity in mind, this vibratory plate features a Briggs & Stratton gasoline engine that provides ideal performance. This single-direction plate made of high-quality steel ensures a clean finish along curbs and obstructions due to its angular side edges. The responsive guide handle control makes operating the machine easy and comfortable, even for longer working conditions thanks to its low hand-arm vibration of less than 5 m/s². For added convenience, the BPS2050B comes with wide, ergonomically designed carrying handles, as well as a large lifting eye meaning you can transport it between job sites easily and comfortably.
Single direction vibratory plate for soil and asphalt compaction. Powered by a Briggs & Stratton gasoline engine.
- Easy to maneuver and provides excellent compaction.
- Angular side edges of the baseplate provides even, clean finish along curbs and obstructions.
- The responsive guide handle results in easy and comfortable control of the machine.
- Low hand-arm vibration of less than 5 m/s², which enables long, comfortable working conditions. .
- Easy to transport: A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable.
- Maintenance-free: The BPS series is equipped with a heavy-duty fan belt and offers lifetime lubrication. As a result, it is practically maintenance free.
- Accessories are available: Wheel set and paving stone pad offer additional applications.
|
ENGINE |
Imperial |
Metric |
|
Fuel management |
Carburettor |
Carburettor |
|
Inclined position max. |
15,0 ° |
15,0 ° |
|
Engine operating mode |
four-stroke |
four-stroke |
|
Operating Engine speed |
3.600 1/min |
3.600 1/min |
|
CO2 (NRSC) |
966,16 g/KWh |
966,16 g/KWh |
|
Standard (Power max.) |
SAE J1940 |
SAE J1940 |
|
Standard (Effective power) |
SAE J1940 |
SAE J1940 |
|
Nominal Engine speed |
3.600 1/min, 3.600 1/min |
3.600 1/min, 3.600 1/min |
|
Electrode distance |
0,030 " |
0,76 mm |
|
Oil filling max. |
0,2 gal US |
0,60 l |
|
Effective power |
4,8 hp, 5,5 hp |
3,6 kW, 4,1 kW |
|
Air cleaner |
dry air filter |
dry air filter |
|
Power rating max. |
5,5 hp |
4,1 kW |
|
Cooling |
air cooling |
air cooling |
|
Exhaust-gas limit |
US Phase 3, EU Stage V |
US Phase 3, EU Stage V |
|
Oil specification |
SAE 5W-30 |
SAE 5W-30 |
|
Engine speed (Power max.) |
3.600 1/min |
3.600 1/min |
|
Starter type |
Recoil starter |
Recoil starter |
|
Upper idling speed ex load |
3.600 1/min |
3.600 1/min |
|
Oil filling min. |
0,2 gal US |
0,60 l |
|
Engine type |
Gasoline engine |
Gasoline engine |
|
Cylinder |
1 |
1 |
|
Engine Manufacturer |
Briggs & Stratton |
Briggs & Stratton |
|
Standard (Operating power) |
SAE J1940 |
SAE J1940 |
|
Cylinder capacity |
9,9 Inch3 |
163 cm3 |
|
Spark plug(s) |
Torch F6TC |
Torch F6TC |
|
Kraftstofftyp |
Gasoline |
Gasoline |
|
Oil volume incl. filter change |
0,2 gal US |
0,60 l |
|
Engine Designation |
XR750_MBSX.1631HB_106232 |
XR750_MBSX.1631HB_106232 |
|
MECHANICAL - OUTPUT DETAILS |
Imperial |
Metric |
|
Vibrations |
5.880 1/min |
5.880 1/min |
|
Forward running |
1,4 fps |
25,00 m/min |
|
Transmission |
FKK-KR |
FKK-KR |
|
Gradeability |
36,4 % |
36,4 % |
|
Centrifugal force |
4.496 lbf |
20,000 kN |
|
Vibrations (Hz) |
98 Hz |
98 Hz |
|
Area capacity |
8.073,0 ft2/h |
750 m2/h |
|
MECHANICAL DETAILS |
Imperial |
Metric |
|
Lenght Drawbar in op. pos. |
38,2 " |
970 mm |
|
Operating weight |
207,5 lb |
94,1 kg |
|
Ground clearance |
26,1 " |
663 mm |
|
Height |
26,1 " |
663 mm |
|
Width |
19,7 " |
500 mm |
|
ENVIRONMENT DATA |
Imperial |
Metric |
|
Operating temperature range |
5 - 113 °F |
-15 - 45 °C |
|
Sound power LWA, guaranteed |
108,0 dB(A) |
108,0 dB(A) |
|
Storage temperature range |
5 - 104 °F |
-15 - 40 °C |
|
HAV summation (average value) |
13,5 ft/s2 |
4,1 m/s2 |
|
Uncertainty in measurement HAV |
1,6 ft/s2 |
0,5 m/s2 |
|
HAV summation (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound level LpA |
95,0 dB(A) |
95,0 dB(A) |
|
Sound power LWA (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound power LWA, measured |
107,0 dB(A) |
107,0 dB(A) |
