sale
Weight lbs (kg) - 181 (82) Shoe Width in (mm) - 111.2 (285) Engine Option - Honda GXR120 Impact Force lbs (kN) - 3,505 (15.6)
Available on MTX models Anti-vibration Handle dramatically reduces operator fatigue and increases productivity.
Cyclone Filter System Cyclonic Air Filtration is a 3 stage system that captures 98% of environmental particles.
Cam-type Clutch ensures optimum contact between the composite shoes and the drum to eliminate slippage and prolong service life.
1. Multi-Function lever with detent controls throttle, start/stop and fuel shut-off. 2. Hourmeter allows accurate tracking of hours and maintenance intervals. Tachometer displays engine RPM while in operation.
video
Weight lbs (kg) - 181 (82) Shoe Width in (mm) - 111.2 (285) Engine Option - Honda GXR120 Impact Force lbs (kN) - 3,505 (15.6)
Available on MTX models Anti-vibration Handle dramatically reduces operator fatigue and increases productivity.
Cyclone Filter System Cyclonic Air Filtration is a 3 stage system that captures 98% of environmental particles.
Cam-type Clutch ensures optimum contact between the composite shoes and the drum to eliminate slippage and prolong service life.
1. Multi-Function lever with detent controls throttle, start/stop and fuel shut-off. 2. Hourmeter allows accurate tracking of hours and maintenance intervals. Tachometer displays engine RPM while in operation.

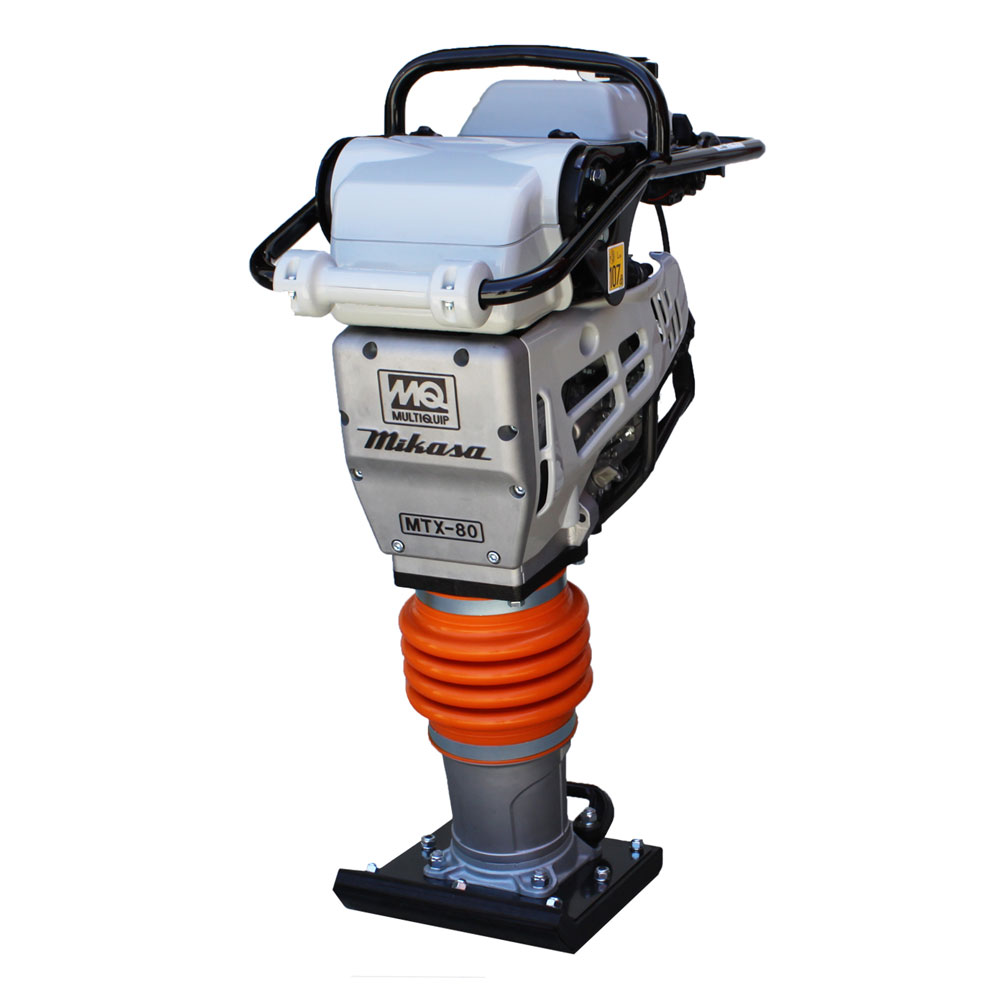

Multiquip Mikasa #MTX80HDR - Rammer Honda GXR120 Diaphragm Carb

(No reviews) Write a Review
$5,966.00
$4,352.00
SKU: MTX80HDR
Availability: Shipping to a US 48 state business address.
Weight: 181.00 LBS
Width: 14.40 (in)
Height: 40.40 (in)
Depth: 31.00 (in)
Shipping: $370.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Multiquip Mikasa #MTX80HDR - Rammer Honda GXR120 Diaphragm Carb

Multiquip Mikasa #MTX80HDR - Rammer Honda GXR120 Diaphragm Carb

$5,966.00
$4,352.00
Description

Multiquip Mikasa #MTX80HDR - Rammer Honda GXR120 Diaphragm Carb

See Multiquip Rammer Brochure

See Multiquip Compaction Handbook

Multiquip’s Mikasa MTX-Series rammers now utilize the all new Honda GXR120 engine. The GXR120 is a high output OHC engine, designed specifically for rammer applications.  MTX80HDR is ideal for high productivty with 3,505 lbs. of force combined with a 11.2" wide shoe.

MTX-Series rammers are renowned for performance and ease of operation. The MTX-Series includes the features most
preferred by contractors such as:

Features

  • Cyclonic air cleaners that capture 98% of airborne dust particles
  • Long-lasting laminated wood and steel shoe
  • Low vibration handles for operator comfort
  • Combination hour meter/tachometer
  • Durable guards to protect the engine from damage
  • Redesigned fuel tank to meet EPA standards for evaporative emmissions



Unit Specifications
Blows Per Min. Up to 678*
Impact Force 3,505 lbf 1590 kgf
Shoe Jump Height 3.1 in 79 mm
Shoe Dimensions (LxW) 13.4 x 11.2 in
340 x 285 mm
Travel Speed Per Min. 49.2 ft 15 m
Fuel Tank Capacity 2.7 qt 2.5 L
Notes: *Variable speed impact — up to maximum impact force.
Dimensions & Weights
Overall Length 31.0 in 788 mm
Overall Width 14.4 in 365 mm
Overall Height 40.4 in 1027 mm
Operating Weight 181 lb 82 kg
Engine Specifications
Engine Make/Model Honda GXR120
Start Method Recoil
Engine Power 3.6 HP 2.7 kW
Engine RPM 4100
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
