ST2038P 2" NPT Discharge 60 GPM - 38' HEAD Designed for hard industrial pumping applications. Unique strainer permits dewatering levels down to 1/16”. Features oil-filled dual shaft seals, aluminum housing, streamline shape, powerful 115V motor, internal thermal protection, and UL/CUL certifications.

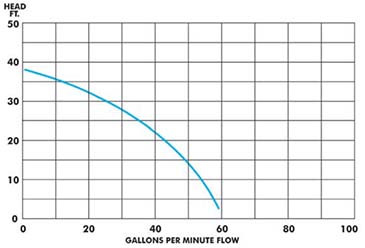

ST2038P Performance Curve 2” Discharge
Multiquip Submersible Pumps for Construction, Municipal & Industrial Applications.
ST2038P 2" NPT Discharge 60 GPM - 38' HEAD Designed for hard industrial pumping applications. Unique strainer permits dewatering levels down to 1/16”. Features oil-filled dual shaft seals, aluminum housing, streamline shape, powerful 115V motor, internal thermal protection, and UL/CUL certifications.
ST2038P Performance Curve 2” Discharge
Multiquip Submersible Pumps for Construction, Municipal & Industrial Applications.

Multiquip #ST2038P - Pump-Sub 2 1HP 115V 60GPM 1

(No reviews) Write a Review
$581.00
$468.00
SKU: ST2038P
Availability: Shipping to a US 48 state business address.
Weight: 34.00 LBS
Width: 10.00 (in)
Height: 15.40 (in)
Depth: 17.00 (in)
Shipping: $36.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Multiquip #ST2038P - Pump-Sub 2 1HP 115V 60GPM 1

Multiquip #ST2038P - Pump-Sub 2 1HP 115V 60GPM 1

$581.00
$468.00
Description

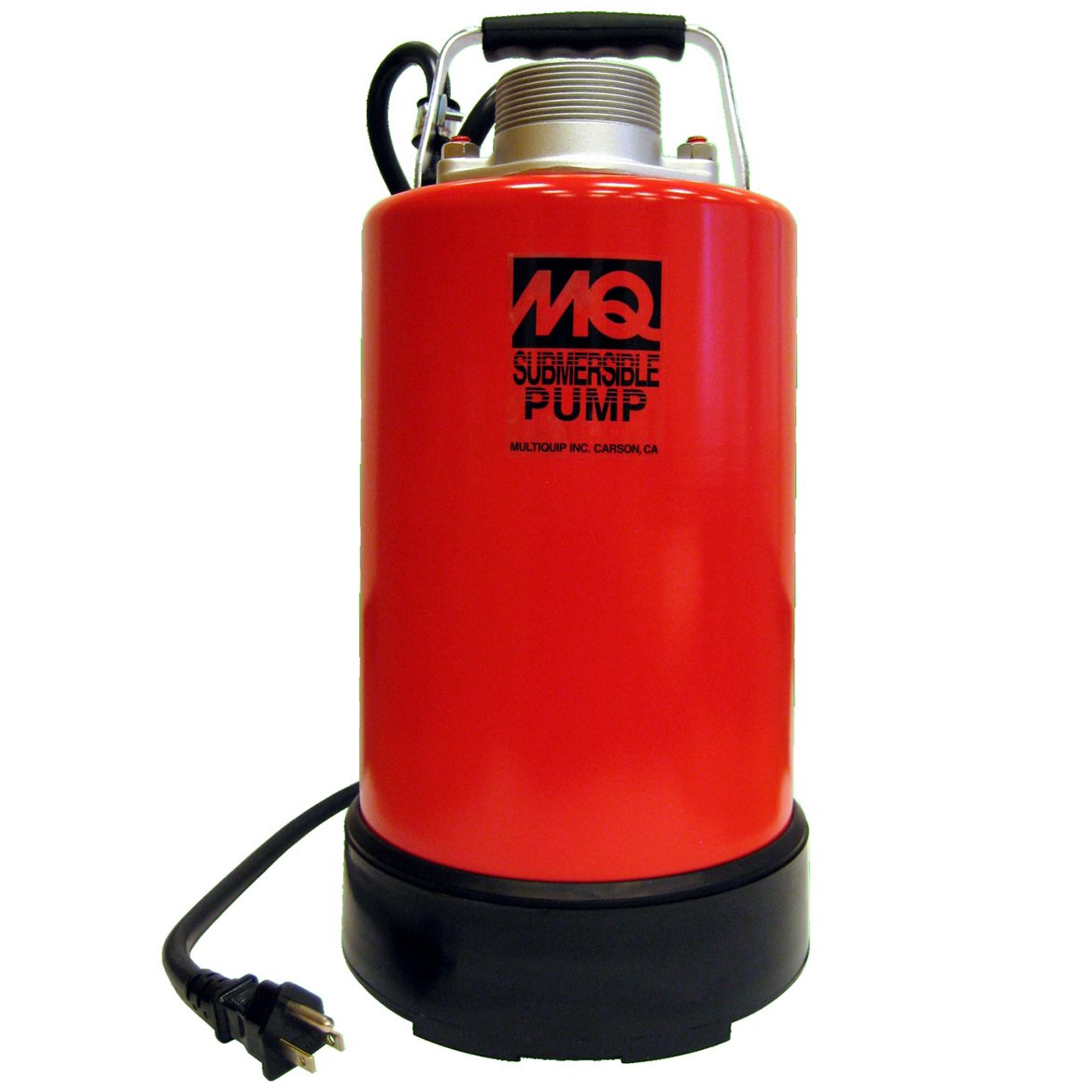

Multiquip #ST2038P - Pump-Sub 2 1HP 115V 60GPM 1
This lightweight, compact submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. The unique casing design of this pump permits it to draw water to a level of 1/16” without having to place the pump in any kind of sump. This versatile, low maintenance pump is perfect for a wide range of operations supporting Contractors, Service Utilities, Municipalities, and Homeowners. Further, the ST2038P incorporates a rugged cast aluminum housing, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 19’ Power Cable with strain relief.
  • 1.0HP, 115V/8.0A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • 2” (NPT) Female Discharge Port.
  • Reliable double mechanical oil-filled seals.
  • Cast iron/steel motor casing serves as heat conductor.
  • Pumps Liquid Up To 120° F.
  • 25’ of molded power cord w/strain relief
  • Dewaters Flat Surfaces Up To 1/16” Levels.



Unit Specifications
Impeller Type Neoprene Rubber over
Cast-Iron
Impeller Disc Size 2 in 50 mm
Total Head 38 ft 11.5 m
Water Capacity 60 gpm 227 lpm
Max. Solid Intake 0 in 0 mm
Electrical Specifications
Power 1 HP 0.75 kW
Phase Single
Voltage 115 V
Starting Amperage 56 A
Running Amperage 6.5 A
Cable Length 25 ft 7.5 m
Dimensions & Weights
Pump Diameter 7.7 in 196 mm
Overall Height 15.4 in 391 mm
Operating Weight 31 lb 14 kg
Notice: Features and equipment specifications are subject to change without notice.
