The Wacker Neuson PSA2 800 Submersible Pump is a great way to quickly and easily remove water from an area. This pump features a 2-inch 220 volt electric motor that is single-phase, making it easy to operate. Additionally, this pump has an automatic switch that makes it cost-effective to use. The compact design of this pump makes it easy to transport and store, while the silicon carbide-faced double mechanical seals provide reliable performance.
The Wacker Neuson PSA2 800 Submersible Pump is a great way to quickly and easily remove water from an area. This pump features a 2-inch 220 volt electric motor that is single-phase, making it easy to operate. Additionally, this pump has an automatic switch that makes it cost-effective to use. The compact design of this pump makes it easy to transport and store, while the silicon carbide-faced double mechanical seals provide reliable performance.

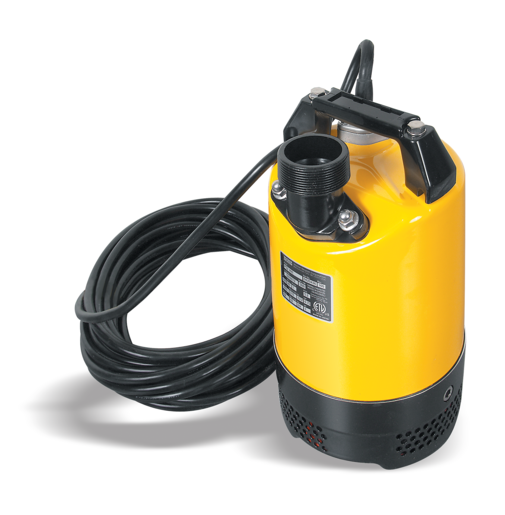

Wacker Neuson PSA2 800 Submersible Pump - 2", 220V/5.3A, 1hp, 49' Cord, 60hz (5000620443)

(No reviews) Write a Review
$1,055.00
$751.69
SKU: 5000620443
Availability: Shipping to a US 48 State Address
Weight: 37.40 LBS
Width: 10.50 (in)
Height: 10.20 (in)
Depth: 18.70 (in)
Shipping: $35.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Wacker Neuson PSA2 800 Submersible Pump - 2", 220V/5.3A, 1hp, 49' Cord, 60hz (5000620443)

Wacker Neuson PSA2 800 Submersible Pump - 2", 220V/5.3A, 1hp, 49' Cord, 60hz (5000620443)

$1,055.00
$751.69
Description

Wacker Neuson PSA2 800 Submersible Pump - 2", 220V/5.3A, 1hp, 49' Cord, 60hz (5000620443)

The Wacker Neuson PSA2 800 Submersible Pump is a reliable and cost-effective solution for dewatering needs. This pump features a lightweight and compact design, making it easy to transport and operate. Additionally, the built-in thermal protection prevents motor damage, ensuring long-lasting use. The silicon carbide-faced double mechanical seals run in an isolated oil filled cavity, providing superior performance. The automatic switch makes this pump ideal for continuous operation, while the heavy-duty strain relief power cord ensures durability.

Features

  • Lightweight, compact design
  • Built-in thermal protection prevents motor damage
  • Silicon carbide-faced double mechanical seals run in isolated oil filled cavity
  • Automatic switch
  • Heavy-duty strain relief power cord

Comes with

  • Submersible Pump/li>
  • Electrical supply cable
  • Operator's manual

Technical Specifications

MOTOR

Imperial

Metric
Nominal current 5,3 A 5,3 A
Nominal voltage 220 V 220 V
Nominal speed 3.300 1/min 3.300 1/min
Nominal frequency 60 Hz 60 Hz
Nominal power 0,750 kW 0,750 kW

MECHANICAL - OUTPUT DETAILS

Imperial

Metric
Flow rate max. 81,9 gal/mi 310 l/min
Solid diameter max. 0,2 " 6,0 mm
Delivery height max. 59,1 Foot 18,0 m

SHIPPING AND STORAGE

Imperial

Metric
Width for shipping 10,5 " 267 mm
Shipping weight 37,4 lb 16,96 kg
Length for shipping 18,7 " 475 mm
Height for shipping 10,2 " 260 mm

ELECTRICAL SYSTEM

Imperial

Metric
Cable definition PVC Sheath PVC Sheath
Length Cable 49,2 Foot 15,00 m
Cable cross-section 0,0 Inch2 2,0 mm2

MECHANICAL DETAILS

Imperial

Metric
Operating weight 30,4 lb 13,8 kg
Length 7,6 " 192 mm
Intake-/Pressure socket-dia. 2,0 " 50 mm
Height 13,4 " 341 mm
Width 8,8 " 223 mm

ENVIRONMENT DATA

Imperial

Metric
Temp. limit borrowed liquid 104,0 °F 40 °C
Degree of protection 68 68
