Low noise level — produces only 66 dBA. Outstanding arc characteristics plus the ability to connect machines together for parallel operation. One or Two-man operation. Independent controls and up to 200 amps for each operator or 340 amps for one operator. SmartStick™ — this sensor automatically shuts off the engine during periods of no load and restarts it when the operator strikes the welding rod. The variable sensor — adjustable from one to 30 minutes — enables the operator to select the optimum working conditions and reduce fuel consumption. Arc Force Control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes from sticking during short arc length welding. Dependable Tier 4 Kubota diesel engine is backed by a three-year engine manufacturer’s warranty. A standard self-priming fuel system allows quick starting even if the engine is run dry. Automatic idle control is standard for improved fuel economy. E-Mode improves fuel efficiency by allowing the operator to weld with the engine at idle speed at up to 200 amps. Greatly reduces operating costs and noise levels. Available accessories include welding cables, wire remotes, battery tenders, fuel heaters, trailers and wheel kits. Trailers can be outfitted with an extended runtime fuel cell, welding cable carriers and a large capacity tool box.

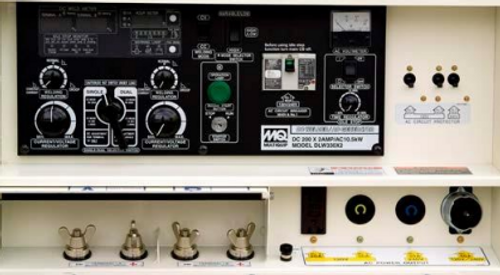

Innovative SmartStick technology automatically stops the engine if no welding or AC power is used for a preset time (One minute to 30 minutes). To restore power, the operator needs only to strike the welding stick.
Welder shown with optional trailer and accessories
Low noise level — produces only 66 dBA. Outstanding arc characteristics plus the ability to connect machines together for parallel operation. One or Two-man operation. Independent controls and up to 200 amps for each operator or 340 amps for one operator. SmartStick™ — this sensor automatically shuts off the engine during periods of no load and restarts it when the operator strikes the welding rod. The variable sensor — adjustable from one to 30 minutes — enables the operator to select the optimum working conditions and reduce fuel consumption. Arc Force Control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes from sticking during short arc length welding. Dependable Tier 4 Kubota diesel engine is backed by a three-year engine manufacturer’s warranty. A standard self-priming fuel system allows quick starting even if the engine is run dry. Automatic idle control is standard for improved fuel economy. E-Mode improves fuel efficiency by allowing the operator to weld with the engine at idle speed at up to 200 amps. Greatly reduces operating costs and noise levels. Available accessories include welding cables, wire remotes, battery tenders, fuel heaters, trailers and wheel kits. Trailers can be outfitted with an extended runtime fuel cell, welding cable carriers and a large capacity tool box.
Innovative SmartStick technology automatically stops the engine if no welding or AC power is used for a preset time (One minute to 30 minutes). To restore power, the operator needs only to strike the welding stick.
Welder shown with optional trailer and accessories

Multiquip DLW330X2 Welder - 340 amp, 10.5 KW, 120/240V, T4F Kubota Diesel

(No reviews) Write a Review
$22,500.00
$18,600.00
SKU: DLW330X2
Availability: Shipping to a US 48 State Business Address
Weight: 893.00 LBS
Width: 26.80 (in)
Height: 33.10 (in)
Depth: 50.80 (in)
Shipping: $995.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Multiquip DLW330X2 Welder - 340 amp, 10.5 KW, 120/240V, T4F Kubota Diesel

Multiquip DLW330X2 Welder - 340 amp, 10.5 KW, 120/240V, T4F Kubota Diesel

$22,500.00
$18,600.00

Multiquip DLW330X2 Welder - 340 amp, 10.5 KW, 120/240V, T4F Kubota Diesel

$22,500.00
$18,600.00
Description

MQ Welders Brochure

This CC (Constant Curent) and CV (Constant Voltage) welder delivers up to 340 amps during single operation, or 200 amps to both outputs during dual operation. As a generator, this unit provides up to 10.5 kW of clean, 120/240 AC power. A digital panel display provides both amperage/voltage and troubleshooting information to the operator(s). Smart Stick, E-Mode, Arc Force are just some of the features of the DLW330X2 from Multiquip.

  • Delivers up to 340 amps as a welder with the convenience of 10.5 kW of AC power as a generator
  • Dual operator output ability
  • Can draw simultaneous AC power while welding
  • Amazing voltage regulation @ 1.5% (+/-)
  • Tier 4 final Kubota diesel - Model D902
  • Arc Force control allows the operator to fine tune DC current during low voltage welding conditions which helps in preventing electrodes froms sticking during short arc length welding
  • Smooth arc characteristics and more consistent, quality weld penetration
  • E-mode improves fuel efficiency by allowing one operator to weld up to 200 amps while the engine maintains idle speeds. Two operators can also use this feature when the total amperage between both outputs does not exceed 200 amps.
  • Smart Stick function automatically shuts the engine down during periods of no load. The operator only needs to tap the welding rod to the grounded work for the engine to restart, making restarts while in the rafters or hanging from the side of a skyscraper a breeze.
  • SMAW, FCAW, GMAW, GTAW and ACAC welding processes
  • Sound attenuated cabinet reduces noise output to 68 dBA @ 23'
  • Full panel GFCI protection - OSHA and NEC compliant
  • Options - Wire remotes, welding cable, cable carriers, tool box, trailers and cold weather items are available for this model.
Unit Specifications
DC Voltage CC: Single 31.2V, Dual 26.6 V CV: Single 28V, Dual 22.3 V
DC Current CC: Single 280, Dual 165 A CV: Single 280, Dual 165 A
Current Range Single 70-340, Dual 35-200 A
Max Duty Cycle
w/ Full Amps Availible		 100% @Single 280, Dual 165 A
Welding Processes SMAW
FCAW
MGAW
GTAW
ACAC
Fuel Tank Capacity 9.5 gal 36 L
Fuel Consumption
at Rated Load		 1.1 gph
Generator Specifications
AC Power Output
(Single Phase)		 10.5 kW
Cycle 60 Hz
Voltage 120/240 V
Amperage 87.6/43.8 A
Voltage Regulation 1.5 %
Receptacles NEMA 5-20R 125V GFCI 20A
NEMA L5-30R 125V Twist-Lock 30A
NEMA L6-30R 250V Twist-Lock 30A
CS-6369 125/250VAC Twist-Lock 50A
**Optional TRLR-MPXF trailer has a built in 28 gal. fuel cell
Dimensions & Weights
Overall Length 50.78 in 1290 mm
Overall Width 26.77 in 680 mm
Overall Height 33.07 in 840 mm
Shipping Dimensions 50.78 x 26.77 x 33.07 in
1290 x 680 x 840 mm
Operating Weight 983 lb 446 kg
Shipping Weight 892.87 lb 405 kg
Notice: Features and equipment specifications are subject to change without notice.
