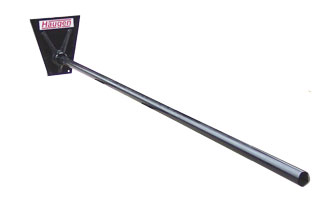

Haugen MCP 126-30 C2 - 3.00"Pole Diameter, 1400 lbs. Pole Tip, Total Cap (PLF) 270 lbs, Carriage Mounted Carpet Pole "Class 2" for Forklifts.
Haugen MCP 126-30 C2 - 3.00"Pole Diameter, 1400 lbs. Pole Tip, Total Cap (PLF) 270 lbs, Carriage Mounted Carpet Pole "Class 2" for Forklifts.
The Haugen MCP 126-30 C2 offers superior performance for your most demanding projects, without sacrificing quality or strength. Featuring a 3" pole diameter and 1/4" Pitch Length 2800, these rugged poles are capable of bearing up to 1400 lbs of force at the tip. The exceptionally designed bolt-on replaceable clips make replacing a snap, while stress relieved poles ensure consistent uniformity in every insertion, holding themselves against set screws. Available in 10'6'' lengths and Heavy Duty Back Plates, you won't find better construction then the Haugen MCP 126-30 C2. Additionally, each pole features rounded tips so there's no need to worry about sharp edges causing injury or damage to surrounding property. For those working with challenging terrain requiring reliable Class 2 carriage mount systems, there is truly no better than the Haugen MCP 126-30 C2.
Carriage Mounted Class 2
- Pole diameter is 2.5", 2.75" or 3.0"
- Bolt-on replaceable clips
- Replaceable poles, held by set screws
- Stress Relieved Poles
- Available in 6', 9', 10'6" and 12' lengths
- Heavy Duty Back Plates
- Rounded Tips
- Class 2 carriage mount
Class 2 | Pole Capacity (LBS) | |||||
Model | Pole Diameter | Pole Length | Pole Material | Pole Tip | 1/2 Pole Length | Total Cap (PLF) |
---|---|---|---|---|---|---|
MCP 72-25 C2 | 2.50" | 6' | Stress Relieved | 1500 | 3000 | 500 |
MCP 108-25 C2 | 2.50" | 9' | Stress Relieved | 950 | 1900 | 210 |
MCP 126-25 C2 | 2.50" | 10'6" | Stress Relieved | 800 | 1600 | 150 |
MCP 144-25 C2 | 2.50" | 12' | Stress Relieved | 700 | 1400 | 110 |
MCP 72-30 C2 | 3.00" | 6' | Stress Relieved | 2600 | 5200 | 860 |
MCP 108-30 C2 | 3.00" | 9' | Stress Relieved | 1700 | 3400 | 370 |
MCP 126-30 C2 | 3.00" | 10'6" | Stress Relieved | 1400 | 2800 | 270 |
MCP 144-30 C2 | 3.00" | 12' | Stress Relieved | 1200 | 2400 | 200 |
