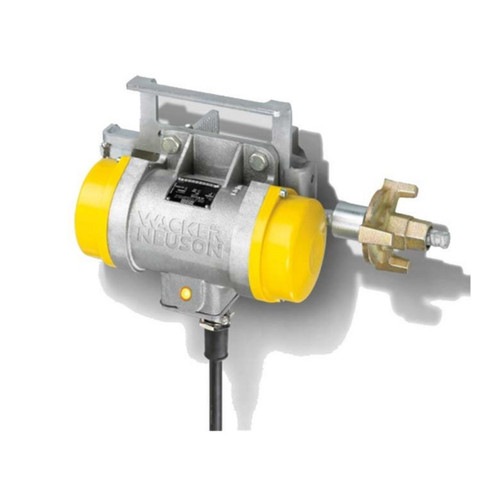

Wacker Neuson AR26/6/042 External Vibrator - 6000 RPM, Electric Motor
Write a Review
Wacker Neuson
Wacker Neuson AR26/6/042 External Vibrator - 6000 RPM, Electric Motor
Wacker Neuson AR26/6/042 External Vibrator - 6000 RPM, Electric Motor
External vibrator for exposed concrete with max. set centrifugal force of 3.5 kN. Series 2, type of fastening 6, 6000 rpm, protective low voltage.
- Small, compact and light
- Asynchronous motor with stable speed
- Sturdy design
|
MOTOR |
Imperial |
Metric |
|
Motor type |
asynchronous motor |
asynchronous motor |
|
MECHANICAL - OUTPUT DETAILS |
Imperial |
Metric |
|
Vibrations |
6.000 1/min |
6.000 1/min |
|
Centrifugal force |
780 lbf |
3,470 kN |
|
Vibrations (Hz) |
100,0 Hz |
100,0 Hz |
|
Centrifugal force max. |
780,09 lbf |
3,470 kN |
|
ELECTRICAL - OUTPUT DETAILS |
Imperial |
Metric |
|
Nominal current |
8,00 A |
8,00 A |
|
Phase |
3 ~ |
3 ~ |
|
Nominal voltage |
42 V |
42 V |
|
Nominal frequency |
200 Hz |
200 Hz |
|
Nominal power [P] |
0,30 kW |
0,30 kW |
|
ELECTRICAL SYSTEM |
Imperial |
Metric |
|
Cable definition |
H07RN-F 3x1,5 |
H07RN-F 3x1,5 |
|
Operating indicator |
yes |
yes |
|
Adjusting frequency |
No |
No |
|
Integrated transformer |
No |
No |
|
Kind of plug |
CEE-Plug 3P 32A 42V 4H |
CEE-Plug 3P 32A 42V 4H |
|
Length Cable |
32,8 Foot |
10,00 m |
|
Cable cross-section |
0,0 Inch2 |
1,5 mm2 |
|
Breaker Switch On/Off |
no |
no |
|
MECHANICAL DETAILS |
Imperial |
Metric |
|
Length |
8,8 " |
223 mm |
|
Height |
4,0 " |
102 mm |
|
Unbalanced mass/side pos2 |
0 |
0 |
|
Unbalanced mass/side pos1 |
8 |
8 |
|
Width |
7,5 " |
190 mm |
|
Weight |
14,24 lb |
6,46 kg |
|
ENVIRONMENT DATA |
Imperial |
Metric |
|
Operating temperature range |
14 - 122 °F |
-10 - 50 °C |
|
Sound level LpA (Standard) |
DIN EN ISO 11201 |
DIN EN ISO 11201 |
|
Protection class |
III / Safety extra-low voltage |
III / Safety extra-low voltage |
|
Temperature of body surface |
176,0 °F |
80 °C |
|
Storage temperature range |
-22 - 158 °F |
-30 - 70 °C |
|
Sound level LpA |
70,0 dB(A) |
70,0 dB(A) |
|
Degree of protection |
IP67 |
IP67 |
|
Custom Attributes |
Imperial |
Metric |
|
Model serie |
AR26 |
